Installation Form of Dust Filter Cartridge

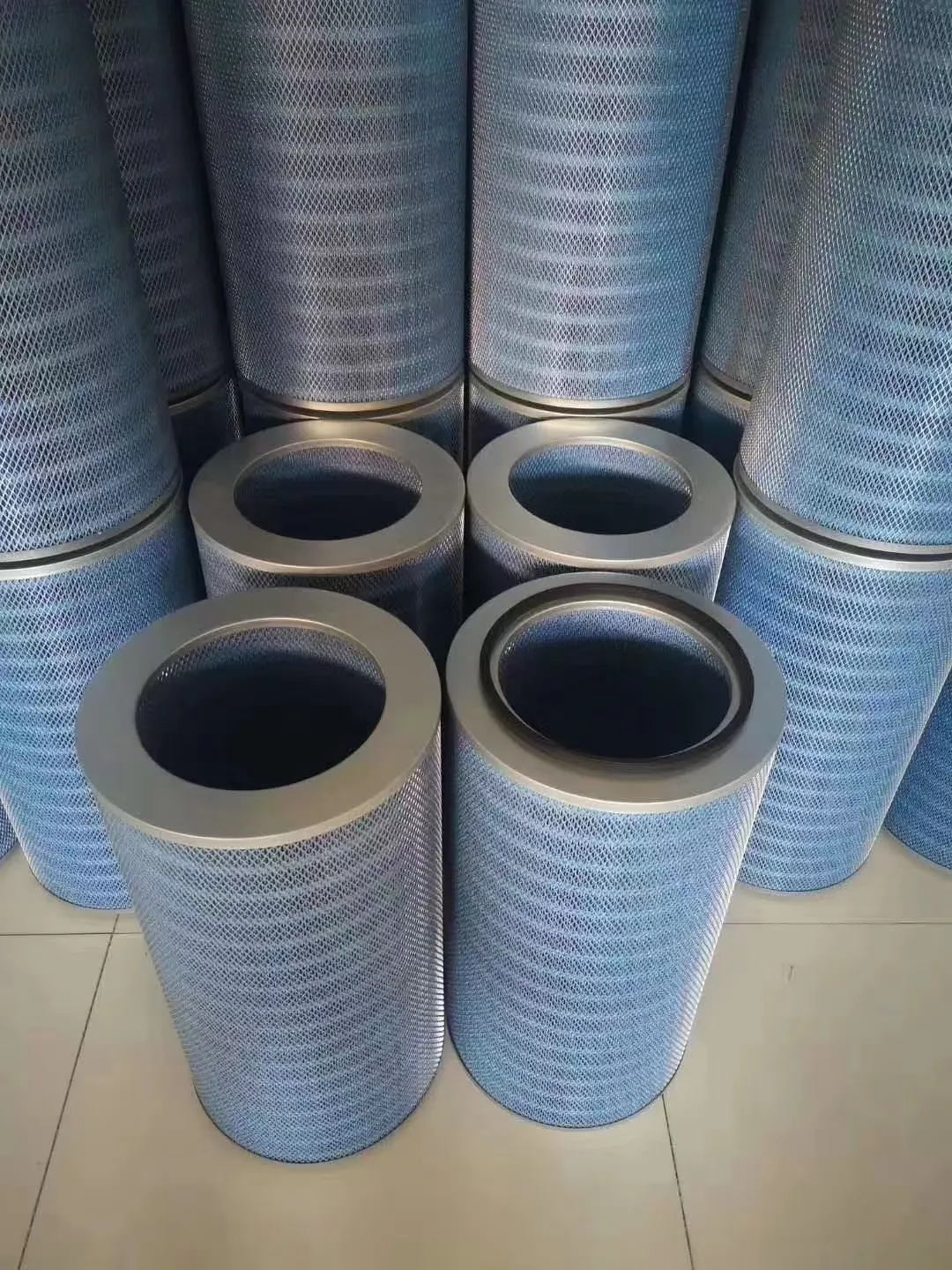

Dust filter cartridges are essential components used in industrial dust collection systems to capture and contain airborne particles. These cartridges are designed to trap dust and other contaminants, preventing them from being released back into the environment. By maintaining clean air in workplaces, dust collector filter cartridges help ensure the health and safety of workers, compliance with air quality regulations, and the longevity of machinery and equipment.
Nowadays, filter cartridge dust collector cartridges have been widely used in various industrial fields and play an indispensable role in environmental purification, especially for working conditions with large air volumes and low concentrations. So what are the installation forms of dust collector filter cartridges?

The Placement Angle of the Dust Filter Cartridge

Depending on the placement angle, there are three different ways to place the dust removal filter cartridge.

Vertical Type

Vertical type: it is often used in stand-alone equipment. During pulse cleaning, the dust is easy to clear and settle to the ash hopper, and the effect is good. This installation method is also commonly used in filter cartridges for working conditions with slightly higher dust concentrations.

Inclined Type

The inclined type has filter cartridges stacked up and down. It has a compact structure and a small footprint, making it easy to change cartridges. However, when cleaning, the dust removed from the upper filter cartridge settles on the lower filter cartridge, making it difficult to remove.

Horizontal Type

Horizontal type: the dust on the upper part of the lower filter cartridge is more difficult to remove. The tilt-mounted dust filter cartridge is suitable for small and medium-sized dust removal systems to remove non-viscous, low-concentration, coarse-grained dust and is also suitable for the renovation of some old-fashioned bag dust collectors. However, it is still effective when used in high air volume and low concentration conditions, such as welding fumes.

Dust Filter Cartridge Fixing Method

The dust filter cartridge can be divided into nine different placement methods according to the different fixing methods.
1. PU-sealed installation filter cartridge, generally vertical bottom installation, small-diameter filter cartridge, small equipment, replaces cloth bags, increases filtration area. Generally not suitable for working conditions with large amounts of dust.
2. The three-ear flange-mounted filter cartridge is generally installed vertically at the bottom. The flower plate has studs and is locked with the closing gasket. The flange can be made of cast aluminum or stainless steel.
3. The round flange is used to install the filter cartridge. You will know how to install it by looking at the rubber pad.
4. The side-mounted cartridge filter cartridge, as you can tell from the name, is side-mounted. Side door, sliding rod type.
5. Plum blossom cap-mounted filter cartridges, chuck-type mounted filter cartridges, and six-lug quick-removable dust filter cartridges are all similar and must have a matching locking mechanism.
6. The three-claw rotary-mounted filter cartridge is similar to the previous one and requires a mechanism to rotate and lock.
7. Bolts are used to install the filter cartridge. The number of bolts may be different, but the theory is the same. Pass through and lock with nuts.
8. Rotating bolt type; need to match the thread for installation
9. Horizontal and oblique installation methods are commonly used, and filter cartridges are installed in both through-hole and small-hole types. Cooperate with the keel and locking or pressing mechanism to complete the fixing and sealing of the two-series filter cartridges.
